PrimerChecker

A PCR primer validation tool that combines three-source genomic search with local thermodynamic analysis.

PrimerChecker

Problem

Primer validation is a chore. You need to check thermodynamic properties (Tm, GC content, hairpins, dimers) and specificity across the genome, which today means bouncing between a local tool for the maths and at least two websites (UCSC BLAT, NCBI BLAST) for the searches. Each step is cheap; the context-switching isn't.

Approach

A Next.js frontend on a FastAPI Python backend. Local analysis modules compute melting temperature via nearest-neighbour thermodynamics (SantaLucia, 1998), plus GC content, hairpin risk, and self- and cross-dimer checks, with a traffic-light verdict (green / amber / red) rolled up at the top of the report. Genomic specificity fans out in parallel to three sources — NCBI Primer-BLAST, NCBI BLAST E-utilities, and EBI BLAST + Ensembl REST — and a confidence score (high / medium / low) is assigned based on how many sources agree. Recent searches are cached in localStorage (max 8, deduped by primer pair and mode) so prior queries are one click away.

Stack

Next.jsFastAPIPythonBioinformatics

Synopsis

The scope is primer validation end-to-end — local thermodynamic analysis (Tm, GC, hairpin, dimer), cross-database specificity against three genomic sources, and a unified traffic-light verdict. The purpose is to collapse the pre-order validation chore from a tour of separate websites and manual cross-referencing into a single panel a scientist can read in under a minute.

Gallery

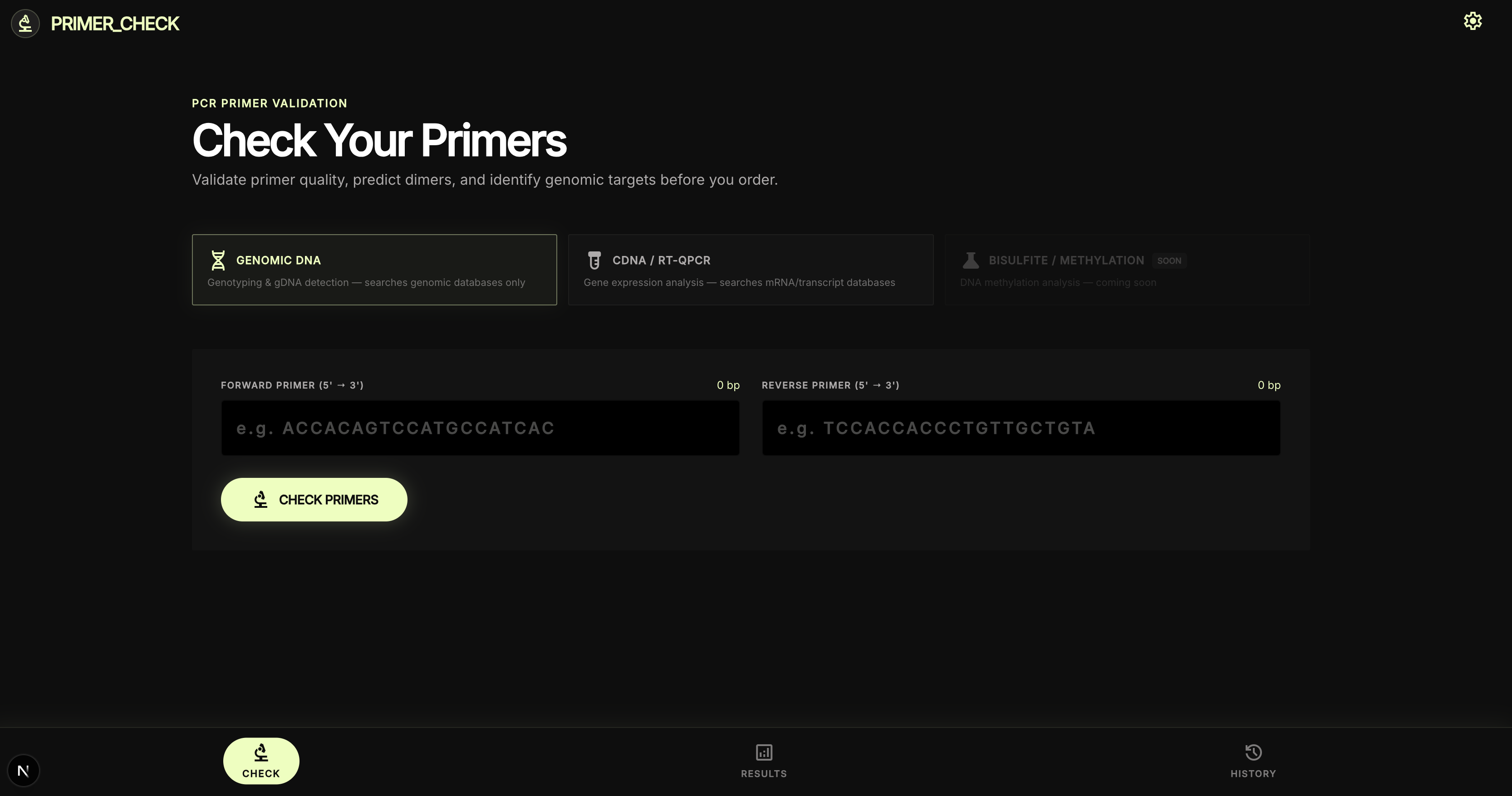

Primer input and target selection

Pick a target type — genomic DNA or cDNA/RT-qPCR — paste the forward and reverse sequences, and queue the run.
Pick a target type — genomic DNA or cDNA/RT-qPCR — paste the forward and reverse sequences, and queue the run.

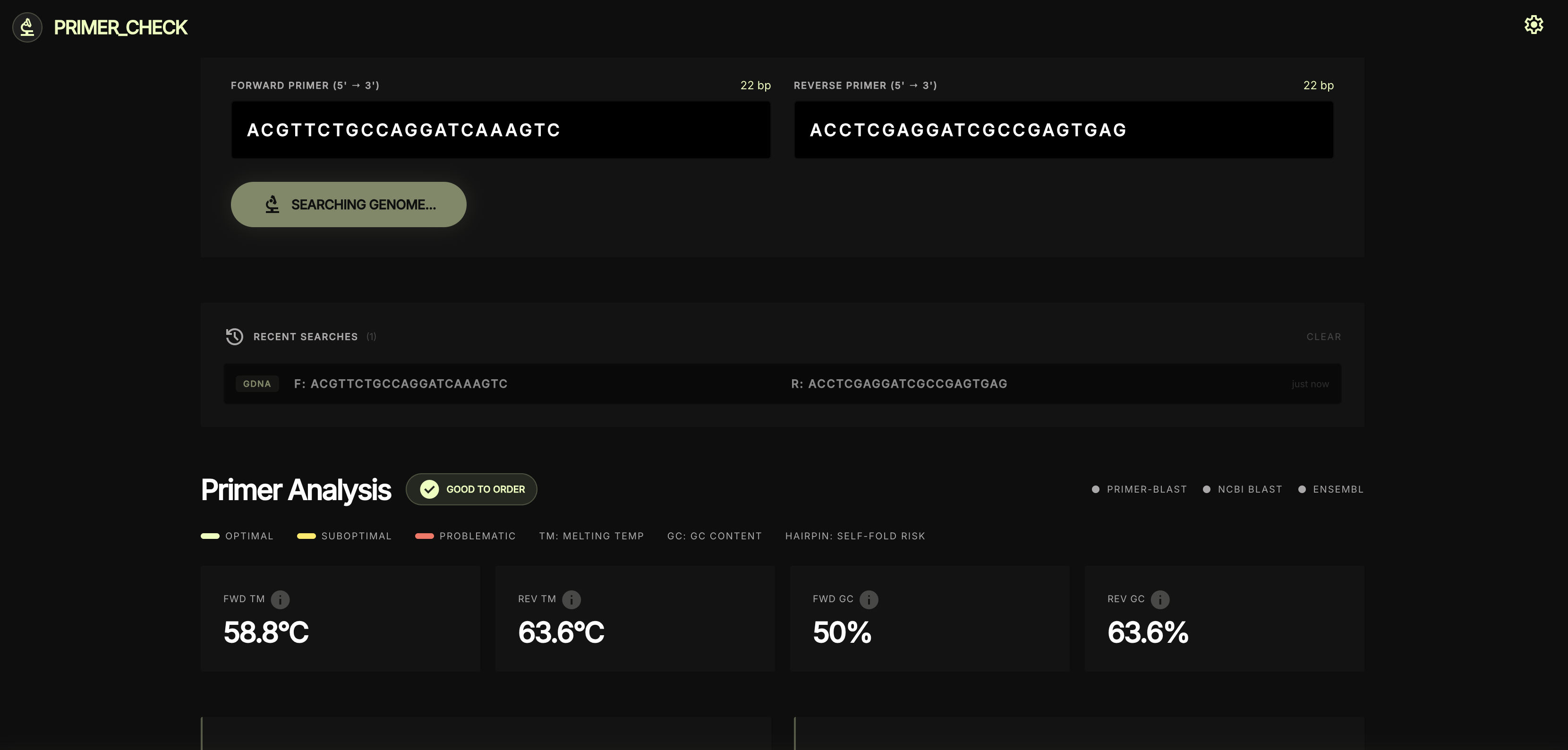

Genome search kicks off in parallel

On submit, specificity searches fan out across the three configured genomic sources; a recent-searches panel keeps prior queries one click away.
On submit, specificity searches fan out across the three configured genomic sources; a recent-searches panel keeps prior queries one click away.

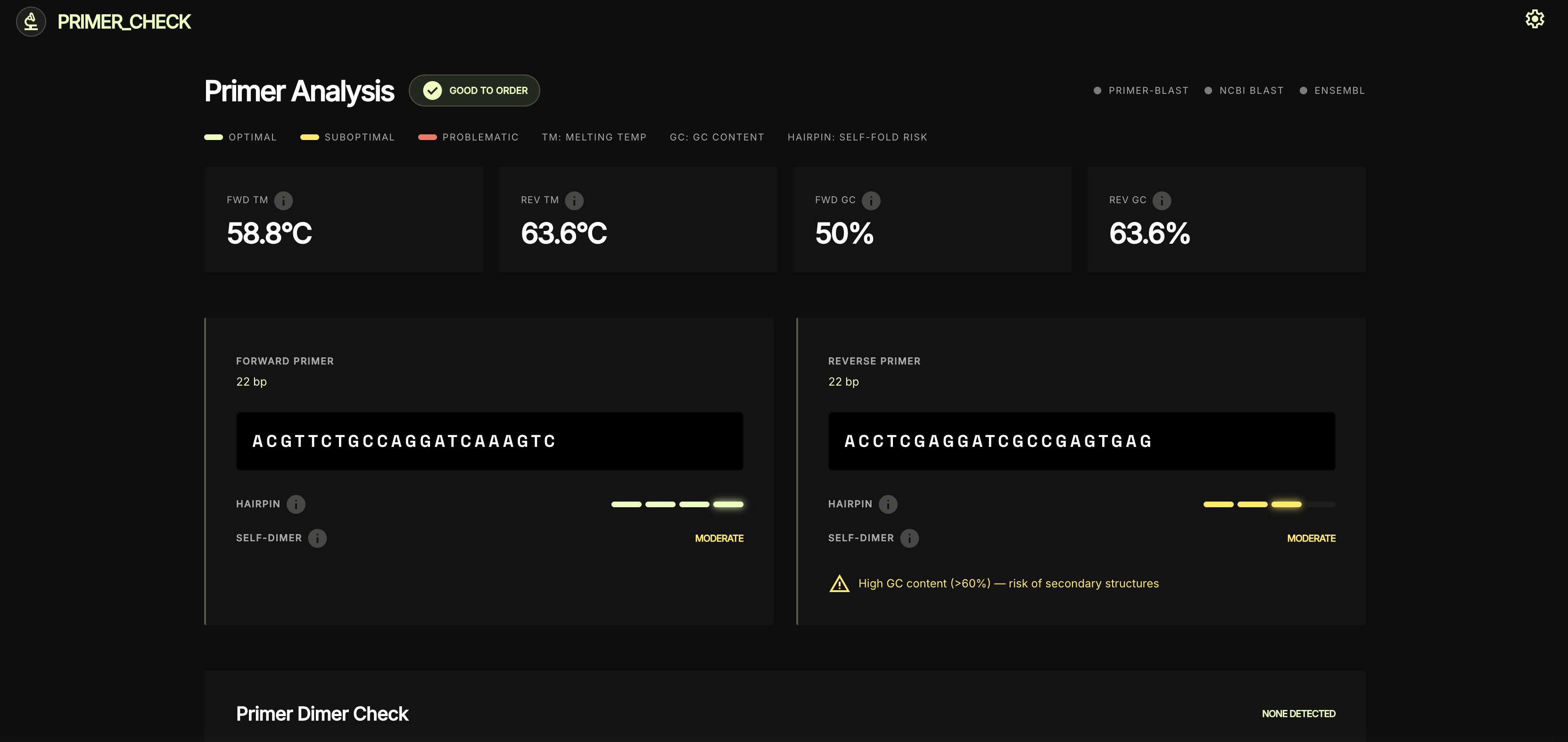

Per-primer thermodynamics

Tm, GC, hairpin risk, and self-dimer severity assessed for each primer, with a traffic-light verdict at the top of the report.
Tm, GC, hairpin risk, and self-dimer severity assessed for each primer, with a traffic-light verdict at the top of the report.

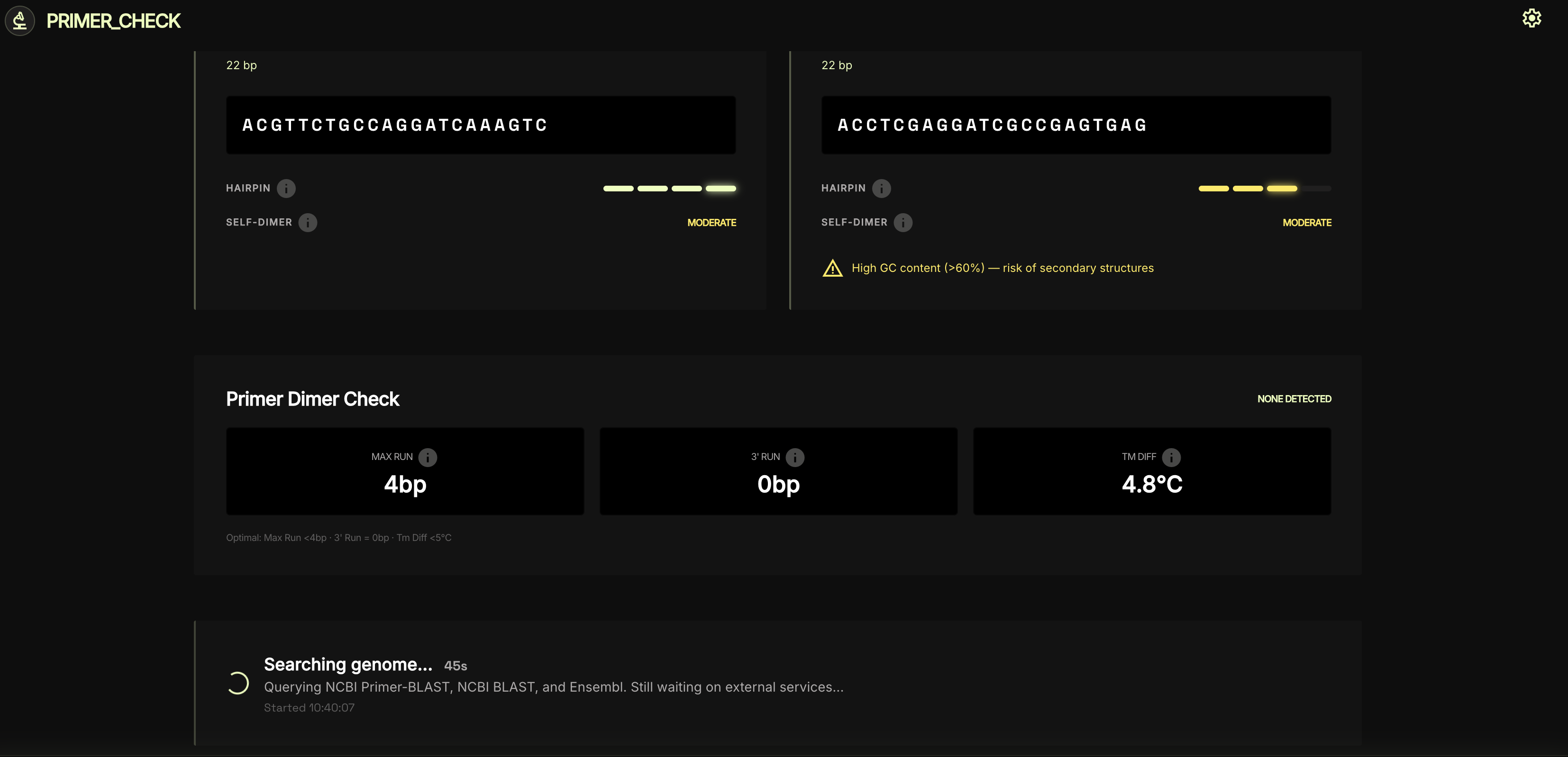

Dimer check + specificity status

Cross-primer dimer analysis lands immediately from the local tier; genomic specificity loads in a second phase from NCBI Primer-BLAST, NCBI BLAST, and EBI / Ensembl REST.
Cross-primer dimer analysis lands immediately from the local tier; genomic specificity loads in a second phase from NCBI Primer-BLAST, NCBI BLAST, and EBI / Ensembl REST.
